RK3588 Vbyone Solution - Development for Medium and Large Screens, Live Streaming Devices

In the industry, "3588" refers toRockchip RK3588. Vbyone is a screen output interface on the RK3588 motherboard,providing a development solution for medium and large 4K screen projects. Some of Dingchang's RK3588 motherboards have integrated Vbyone 4K screen interfaces,facilitating customers' development of smart medium and large screeninteractive devices or integrated live streaming application devices.

‍

The RK3588 does not natively have a Vbyoneinterface; it is basically implemented through an adapter solution, and there is no audio transmission function. Dingchang's RK3588 Vbyone solution board isbased on Android 12, with an onboard 4K Vbyone channel, supporting a maximum resolution of 4096×2160@60Hz.

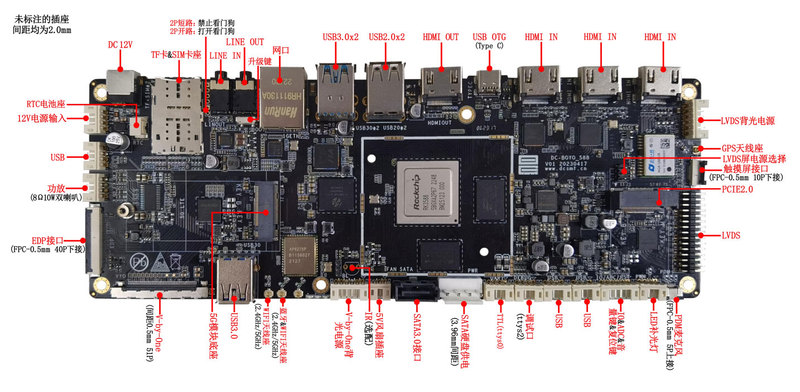

The editor from Dingchang attaches moreintroductions to this RK3588 Vbyone 4K solution motherboard.

RK3588 2.4G octa-core high-frequency maincontrol, supporting 3 channels of HDMI IN 4K screens, 1 channel of HDMI OUT 8Kscreen, as well as multi-screen functions such as LVDS, EDP, and HDMI forsimultaneous or different display and screen combination development.

• Optimized for online and offline livestreaming machines and conference video terminals, providing a VBYONE 4K screenultra-high-definition interface, offering upper-layer application and development support for common live streaming and recording software apps like Douyin and AI algorithms, and supporting secondarydevelopment.

• Network support: including dual-band WIFI,4G, 5G modules, GPS, and 1 Gigabit Ethernet port.

• Supports PDM microphone dual-channel inputand power amplifier dual-speaker output.

• Provides an LED fill light, supports nightlive streaming function, and has been adapted to a 50-megapixel Sonyultra-high-definition camera.

• Supports large-capacity SATA hard drives orsolid-state drives.

• Up to 9 USB interfaces, 2 TTL serial ports,and supports 1 touch I2C.

• Optional hardware watchdog, timed poweron/off, infrared, and other functions.

• Eight-layer PCB with excellent workmanship,independently developed and manufactured by Dingchang.

• There is also a complete live streamingmachine solution, welcome to inquire.
